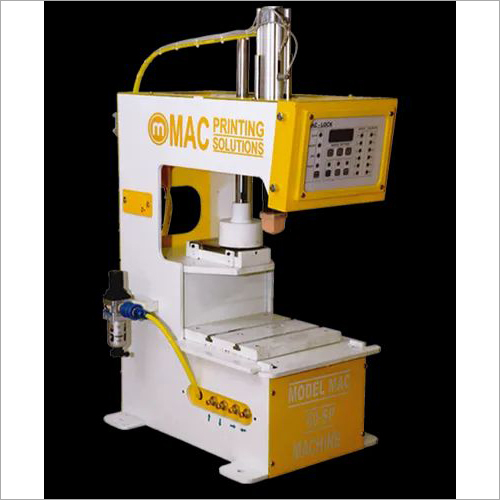

LED Bulb Printing Machine

LED Bulb Printing Machine

192000 INR

Product Details:

  • Type LED Bulb Printing Machine
  • Material MS
  • Capacity 1500-1800 T/hr
  • Computerized Yes
  • Automatic Grade Semi-Automatic
  • Print Direction Uni-Directional
  • Power 240-380 Volt (v)
  • Supply Ability : 1 Piece Per Week
  • Click to view more
X

Price And Quantity

  • 1 Piece
  • 100000.00 - 400000.00 INR
  • 192000 INR

Product Specifications

  • Uni-Directional
  • LED Bulb Printing Machine
  • 1500-1800 T/hr
  • 150-200 Kilograms (kg)
  • MS
  • 1Year
  • Yes
  • 240-380 Volt (v)
  • Semi-Automatic

Trade Information

  • 1 Piece Per Week
  • 5-7 Days

Product Description

With the support of our diligent employees, we are involved in manufacturing and supplying LED Bulb Printing Machine. This machine is used for carrying out a printing process on LED bulbs. It is designed in a way, which allows it to handle bulbs with care while printing operations. Moreover, its excellent printing heads ensure that the printed material is readable and can be understood easily. Moreover, LED Bulb Printing Machine is highly resistant to corrosion that further increases its work life.



Features:

  • Precisely engineered
  • Easy to use
  • Offers a long service life



Specification

Standard Cliche Plate Size

250x100x10mm / 300 x 100 x 10mm

Maximum Printing Dia

70x120mm / 70 x 170mm

Printing Capacity

800 - 1000 Prints / Hour

Maximum Height of Product

100mm

Drive

Pneumatic

Printing Force

800N at 6 bar

Compressed Air Connection

6 - 8 bar working pressure

Air consumption Max.

4.8 Nm3 / hr at 6 bar & about 800 Prints

Electronic Control System

With 10 inputs & 6 outputs each for peripheral units

With 4 inputs & 4 outputs for integration into production lines

Pad Vertical Stroke

Maximum 100mm Infinitely adjustable

Speed Adjustment

Infinitely Adjustable Via Pneumatic Choke

Dimensions

Length - 685mm

Width - 690mm

Height - 840mm

Weight

86Kgs.
